Parameter Bindings

Bindings are the declarative, no-code way to connect controls to parameters. They are the preferred approach for the vast majority of UI behaviour — reach for Lua scripting only when a binding genuinely cannot express what you need.

What Is a Binding?

A binding is a live, two-way link between a control and a parameter value:

• When the user interacts with the control, the parameter updates.
• When the parameter changes (from the engine or from another control), the control updates.

No event handlers, no callbacks, no manual sync.

Binding via parameterUid

Binding is done by setting parameterUid under a control’s props:. Despite the field name, it accepts either a UUID or a parameter name:

# Engine parameter — always use the UUID (no user-visible name exists)
cutoff_knob:
  type: knob
  pos: { x: 100, y: 50, w: 48, h: 48 }
  props:
    parameterUid: "08afbf03-738b-48ad-a340-0c482f505683"

# User-defined global parameter — name is clearer and works just as well
tab_panel:
  type: portal
  anchors: { left: 0, right: 0, top: 32, bottom: 0 }
  props:
    parameterUid: tab-index
    forms: [...]

Engine parameters have a UUID but no user-visible name — reference them by UUID only. User-defined global parameters have both a name (you choose it in the patch settings) and an auto-assigned UUID — either works, but the name is usually more readable in YAML.

Parameter Sources

Engine Parameters

Engine parameters are defined by the audio modules in your instrument. To get a parameter’s UUID:

1. Open the Layer editor.
2. Right-click the parameter you want to bind.
3. Choose Copy Parameter UID.
4. Paste into parameterUid in your YAML.

User-Defined Global Parameters

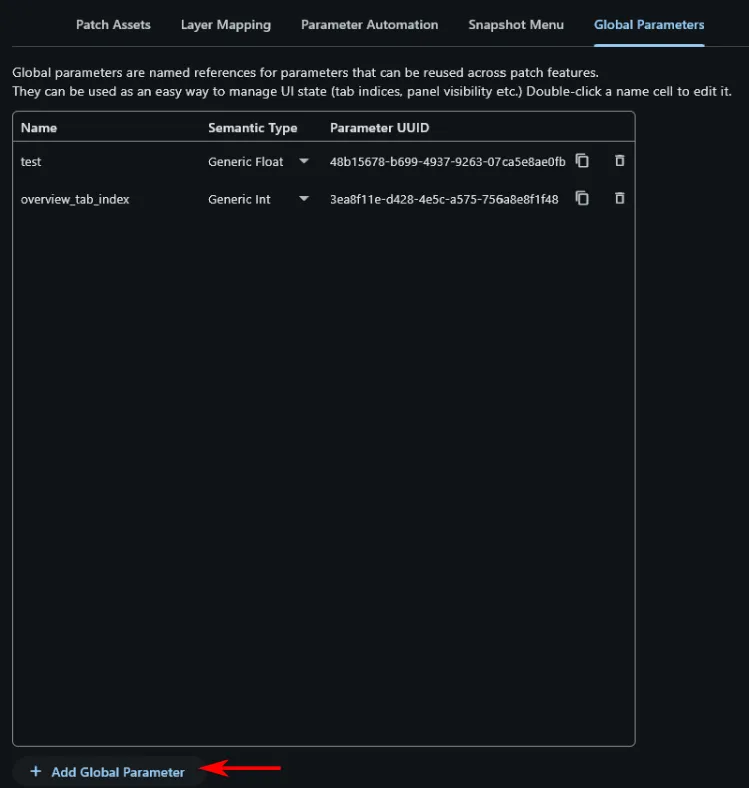

You can create parameters that have no audio meaning — they exist purely as shared UI state. Global parameters are managed in the Patch Settings view. Add a new one and configure:

Field	Description
name	Your chosen identifier, e.g. tab-index. This is the string you use in YAML and Lua.
samentic type	generic float, generic int, generic bool, or generic string

The editor assigns a UUID automatically. The UUID is shown in the global parameter table in Patch Settings and can be copied from there. In practice you’ll use the name — it’s more readable and just as reliable.

Global parameters are the right tool for UI state: tab index, selected mode, expanded panels.

Binding the Same Parameter to Multiple Controls

A single parameterUid can appear in as many controls as you like. This is the key pattern for synchronized UI elements.

Example: tab buttons + content panel in sync

1. In Patch Settings, create a global parameter named tab-index (int, min 0, max 2, default 0).
2. A single buttonSelector handles all the tab buttons:

tabs:
  type: buttonSelector
  pos: { x: 0, y: 0, w: 320, h: 32 }
  props:
    parameterUid: tab-index
    labels: [Osc, Filter, Env]
    orientation: horizontal

3. A portal switches the content area using the same parameter:

content:
  type: portal
  anchors: { left: 0, right: 0, top: 32, bottom: 0 }
  props:
    parameterUid: tab-index
    forms:
      - form: osc_tab
      - form: filter_tab
      - form: env_tab

The buttons and the panel are now permanently in sync. No Lua needed.

When Bindings Are Not Enough

Bindings handle:

• Value-to-control sync in both directions
• Multi-control sync via a shared parameterUid
• Tab / conditional panel switching
• Switching between sub-forms based on a parameter value (via portal)

Bindings do not handle:

• Computed values (e.g. display the sum of two parameters)
• Conditional logic beyond what portal’s index-based switching covers
• Side effects on other parts of the instrument

For those cases, use a Lua backing script.
